கிளவுட்-அக்னாஸ்டிக் AI Observability தளம் - கட்டமைப்பு

கண்ணோட்டம்​

This document describes the architecture of a cloud-agnostic AI observability platform built on AWS managed services. The platform provides unified monitoring, cost optimization, and operational insights for Large Language Model (LLM) workloads across multiple cloud providers.

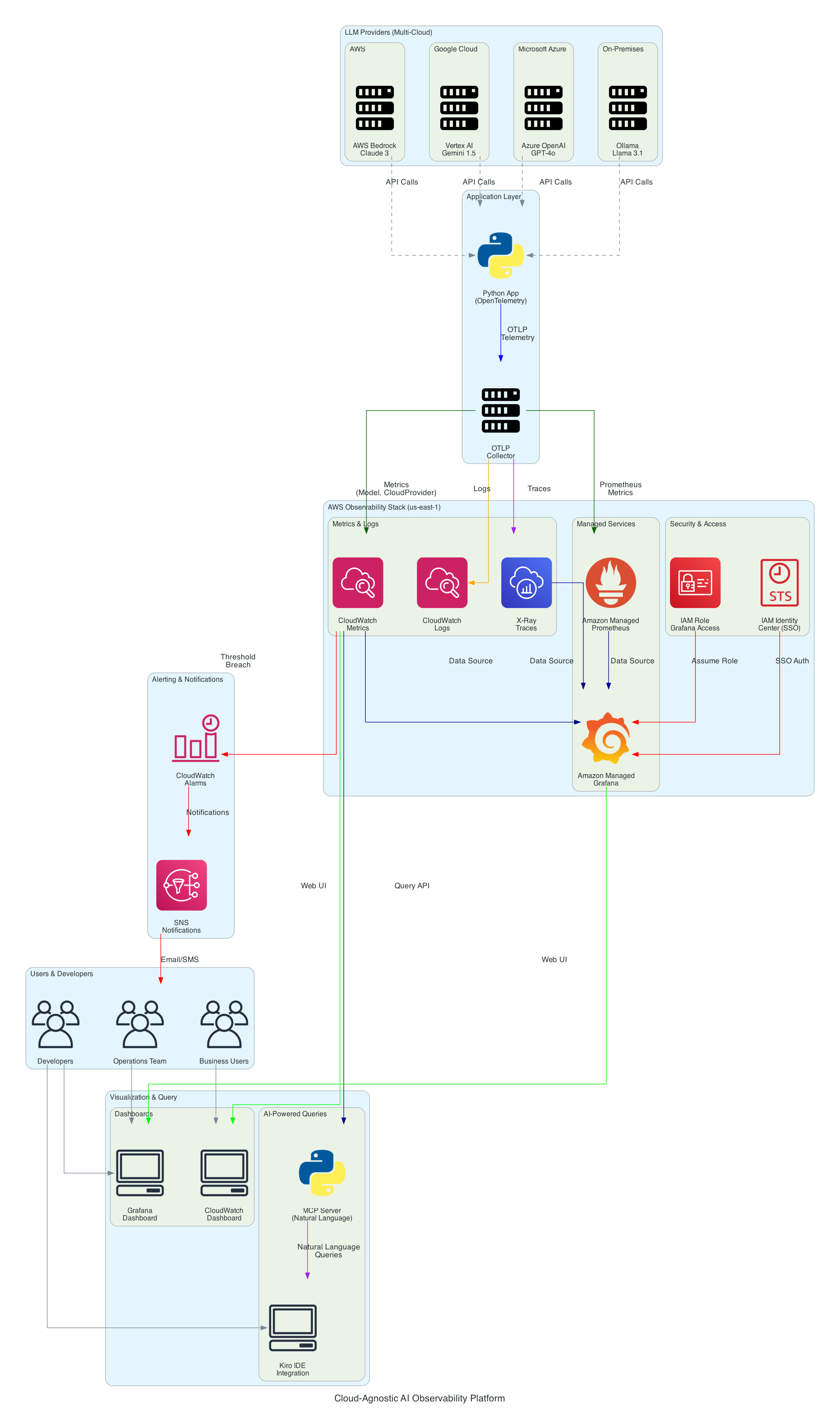

கட்டமைப்பு வரைபடம்​

Architecture Diagram

கட்டமைப்பு கூறுகள்​

1. LLM Providers Layer (Multi-Cloud)​

The platform supports monitoring LLM invocations across multiple providers:

Model Flexibility

The models listed below are the ones used in this demo. Since the platform uses LiteLLM as the AI gateway, you can substitute any LLM supported by LiteLLM — simply update gateway/litellm-config.yaml with your preferred models. The observability pipeline works the same regardless of which models you choose.

AWS Bedrock​

  • Models: Claude 3 Haiku, Claude 3 Sonnet
  • Integration: AWS SDK (boto3)
  • Metrics: Token usage, latency, request counts
  • Dimension: CloudProvider=aws

Google Vertex AI​

  • Models: Gemini 1.5 Pro, Gemini 1.5 Flash
  • Integration: Simulated (production would use Google Cloud SDK)
  • Metrics: Token usage, latency, request counts
  • Dimension: CloudProvider=gcp

Azure OpenAI​

  • Models: GPT-4o, GPT-4o Mini
  • Integration: Simulated (production would use Azure SDK)
  • Metrics: Token usage, latency, request counts
  • Dimension: CloudProvider=azure

On-Premises (Ollama)​

  • Models: Llama 3.1 70B, Mistral 7B
  • Integration: Simulated (production would use Ollama API)
  • Metrics: Token usage, latency, request counts
  • Dimension: CloudProvider=on-prem

2. Application Layer​

Python Application​

  • Framework: OpenTelemetry SDK for instrumentation
  • Language: Python 3.8+
  • Responsibilities:
    • Invoke LLM APIs across providers
    • Collect telemetry (metrics, traces, logs)
    • Send data to OpenTelemetry Collector

OpenTelemetry Collector​

  • Protocol: OTLP (OpenTelemetry Protocol)
  • Format: Cloud-agnostic, vendor-neutral
  • Responsibilities:
    • Receive telemetry from application
    • Transform and enrich data
    • Export to AWS services

3. AWS Observability Stack​

Amazon CloudWatch​

  • Service Type: Managed metrics and monitoring
  • Region: us-east-1
  • Namespace: AIObservability
  • Metrics:
    • InputTokens - Token count for prompts
    • OutputTokens - Token count for completions
    • Latency - Response time in milliseconds
  • Dimensions:
    • Model - LLM model identifier
    • CloudProvider - Provider (aws, gcp, azure, on-prem)
  • Retention: 15 months (default)
  • Cost: $0.30 per metric per month (first 10,000 metrics free)

AWS X-Ray​

  • Service Type: Distributed tracing
  • Region: us-east-1
  • Responsibilities:
    • Track request flow across services
    • Identify performance bottlenecks
    • Visualize service dependencies
  • Trace Format: X-Ray segment documents
  • Retention: 30 days
  • Cost: $5.00 per 1 million traces recorded

CloudWatch Logs​

  • Service Type: Log aggregation and analysis
  • Region: us-east-1
  • Log Group: /ai-observability-demo
  • Format: JSON structured logs
  • Features:
    • CloudWatch Logs Insights for querying
    • Log retention policies
    • Metric filters for alerting
  • Retention: 7 days (configurable)
  • Cost: $0.50 per GB ingested

Amazon Managed Prometheus (AMP)​

  • Service Type: Managed Prometheus-compatible monitoring
  • Region: us-east-1
  • Workspace ID: <your-amp-workspace-id>
  • Use Case: Time-series metrics storage
  • Query Language: PromQL
  • Retention: 150 days
  • Cost: $0.10 per million samples ingested

Amazon Managed Grafana (AMG)​

  • Service Type: Managed Grafana for visualization
  • Region: us-east-1
  • Workspace ID: <your-amg-workspace-id>
  • Authentication: IAM Identity Center (SSO)
  • Data Sources:
    • Amazon CloudWatch
    • AWS X-Ray
    • Amazon Managed Prometheus
  • Features:
    • Dynamic dashboards with template variables
    • Multi-cloud filtering
    • Auto-refresh (30 seconds)
  • Cost: $9.00 per active user per month

4. Security & Access Control​

IAM Role (Grafana Access)​

  • Role Name: ai-observability-grafana-role
  • Purpose: Allow Grafana to query AWS services
  • Managed Policies:
    • CloudWatchReadOnlyAccess
    • AWSXRayReadOnlyAccess
    • AmazonPrometheusQueryAccess
  • Trust Policy: Allows Grafana workspace to assume role
  • Principle of Least Privilege: Read-only access only

IAM Identity Center (SSO)​

  • Region: us-east-2 (Ohio)
  • Purpose: Single sign-on for Grafana users
  • Users: <your-email> (ADMIN role)
  • Integration: SAML 2.0 authentication
  • Benefits:
    • Centralized user management
    • MFA support
    • Audit logging

5. Visualization & Query Layer​

Grafana Dashboard​

  • Type: Dynamic dashboard with template variables
  • File: grafana/dashboards/ai-observability-dynamic.json
  • Features:
    • Cloud Provider dropdown (auto-discovers: aws, gcp, azure, on-prem)
    • Model dropdown (auto-discovers all models)
    • Multi-select filters
    • Real-time metrics (30s refresh)
  • Panels:
    • Input Tokens by Model (time series)
    • Output Tokens by Model (time series)
    • Latency by Model (time series)
    • Total Requests (stat)
    • Average Latency (stat)

CloudWatch Dashboard​

  • Name: AI-Observability-Demo
  • Type: Native CloudWatch dashboard
  • Widgets:
    • Input/Output token metrics
    • Latency statistics
    • Request counts
  • Dimensions: Model and CloudProvider
  • Access: AWS Console

MCP Server (Natural Language Queries)​

  • Technology: Model Context Protocol
  • Language: Python 3.8+
  • Integration: Kiro IDE
  • Tools:
    • get_token_usage - Query token consumption
    • get_model_latency - Query latency statistics
    • get_request_count - Query request volumes
    • get_cost_estimate - Estimate costs
    • compare_models - Side-by-side comparison
  • Query Examples:
    • "Which model is consuming the most tokens?"
    • "What's the average latency for Claude Haiku?"
    • "Estimate my LLM costs for the last hour"

Kiro IDE Integration​

  • Purpose: Developer-centric observability
  • Features:
    • Natural language queries in IDE
    • No context switching to dashboards
    • Real-time metrics during development
  • Configuration: kiro-mcp-config.json

6. Alerting & Notifications​

CloudWatch Alarms​

  • Purpose: Proactive monitoring and alerting
  • Alarm Types:
    • Cost threshold breaches
    • Latency SLA violations
    • Error rate increases
    • Token usage anomalies
  • Actions: Trigger SNS notifications

Amazon SNS​

  • Purpose: Multi-channel notifications
  • Channels:
    • Email
    • SMS
    • Slack (via webhook)
    • PagerDuty integration
  • Subscribers: Operations team

தரவு ஓட்டம்​

1. LLM Invocation Flow​

User Request → Application → LLM Provider API
                    ↓
            OpenTelemetry SDK
                    ↓
         (Collect Telemetry)
                    ↓
            OTLP Collector

2. Telemetry Export Flow​

OTLP Collector → CloudWatch (Metrics)
              → X-Ray (Traces)
              → CloudWatch Logs (Logs)
              → Prometheus (Time Series)

3. Visualization Flow​

CloudWatch/X-Ray/Prometheus → Grafana → Users
                           → CloudWatch Dashboard → Users

4. Query Flow (MCP)​

Developer → Kiro IDE → MCP Server → CloudWatch API → Response

5. Alerting Flow​

CloudWatch Metrics → Alarm Threshold → SNS → Operations Team

முக்கிய வடிவமைப்பு முடிவுகள்​

1. Cloud-Agnostic Approach​

Decision: Use OpenTelemetry as the instrumentation standard

Rationale:

  • Vendor-neutral, open-source standard
  • Works with any LLM provider
  • Future-proof against provider changes
  • Portable across cloud platforms

Trade-offs:

  • Additional abstraction layer
  • Requires OTLP collector setup
  • Learning curve for OpenTelemetry

2. AWS Managed Services​

Decision: Use Amazon Managed Grafana and Prometheus instead of self-hosted

Rationale:

  • No infrastructure management overhead
  • Built-in high availability and scalability
  • Automatic patching and updates
  • AWS-native security integration
  • Pay-per-use pricing model

Trade-offs:

  • Higher cost than self-hosted (for large scale)
  • Less customization flexibility
  • AWS region dependency

3. Dimensional Metrics​

Decision: Use CloudWatch dimensions (Model, CloudProvider) instead of metric name prefixes

Rationale:

  • Flexible querying and aggregation
  • Efficient storage (no metric explosion)
  • Supports dynamic filtering in Grafana
  • Easy to add new dimensions

Trade-offs:

  • CloudWatch dimension limits (30 per metric)
  • Requires careful dimension design
  • Query complexity increases

4. IAM Identity Center for SSO​

Decision: Use IAM Identity Center instead of Grafana native authentication

Rationale:

  • Centralized user management
  • MFA support out of the box
  • Audit logging for compliance
  • Integration with corporate identity providers

Trade-offs:

  • Additional AWS service dependency
  • Setup complexity
  • Regional constraints (us-east-2)

5. MCP for Natural Language Queries​

Decision: Build custom MCP server instead of using existing query tools

Rationale:

  • Developer-centric experience
  • Reduces context switching
  • Natural language interface
  • IDE integration

Trade-offs:

  • Custom code to maintain
  • Limited to supported IDEs
  • Requires MCP protocol knowledge

அளவிடுதல் கருத்தில் கொள்ளல்கள்​

Metrics Volume​

Current Scale:

  • 3 metrics per invocation (InputTokens, OutputTokens, Latency)
  • 2 dimensions per metric (Model, CloudProvider)
  • ~10 invocations per minute in demo

Production Scale Estimate:

  • 1,000 invocations per second
  • 180,000 metric data points per minute
  • 259 million data points per day

CloudWatch Limits:

  • 1,000 transactions per second (TPS) per account per region
  • 150 TPS per API (PutMetricData)
  • Solution: Use batching (up to 1,000 metrics per request)

Cost Optimization​

Strategies:

  1. Metric Aggregation: Pre-aggregate metrics before sending to CloudWatch
  2. Sampling: Sample traces (e.g., 10% of requests) for high-volume workloads
  3. Retention Policies: Reduce log retention for non-critical logs
  4. Reserved Capacity: Use Savings Plans for predictable workloads

Estimated Monthly Cost (1M invocations/day):

  • CloudWatch Metrics: ~$90
  • CloudWatch Logs: ~$15
  • X-Ray: ~$150
  • Amazon Managed Grafana: $9 per user
  • Amazon Managed Prometheus: ~$30
  • Total: ~$300/month + $9 per user

High Availability​

Built-in HA:

  • CloudWatch: Multi-AZ by default
  • X-Ray: Multi-AZ by default
  • Amazon Managed Grafana: Multi-AZ deployment
  • Amazon Managed Prometheus: Multi-AZ deployment

Application HA:

  • Deploy application across multiple AZs
  • Use Application Load Balancer for distribution
  • Implement retry logic with exponential backoff

பாதுகாப்பு சிறந்த நடைமுறைகள்​

1. Least Privilege Access​

  • Grafana role has read-only access to AWS services
  • No write permissions to CloudWatch, X-Ray, or Prometheus
  • Separate roles for different user groups

2. Encryption​

  • At Rest: CloudWatch Logs encrypted with AWS KMS
  • In Transit: TLS 1.2+ for all API calls
  • Grafana: HTTPS only with valid SSL certificate

3. Network Security​

  • Grafana workspace in AWS-managed VPC
  • No public internet access to backend services
  • VPC endpoints for AWS service access (optional)

4. Audit Logging​

  • CloudTrail logs all API calls
  • Grafana access logs in CloudWatch
  • IAM Identity Center audit logs

5. Secrets Management​

  • AWS credentials via IAM roles (no hardcoded keys)
  • LLM API keys in AWS Secrets Manager
  • Automatic key rotation policies

கண்காணிப்பு அமைப்பை கண்காணித்தல்​

Meta-Monitoring​

CloudWatch Metrics for Platform Health:

  • Grafana workspace status
  • Prometheus workspace status
  • API call success rates
  • Query latency

Alarms:

  • Grafana workspace unavailable
  • CloudWatch API throttling
  • X-Ray trace ingestion failures

பேரிடர் மீட்பு​

Backup Strategy​

CloudWatch:

  • Metrics: Retained for 15 months (no backup needed)
  • Logs: Export to S3 for long-term retention
  • Dashboards: Version controlled in Git

Grafana:

  • Dashboards: Exported as JSON, stored in Git
  • Data sources: Configuration as code (Terraform)
  • Users: Managed via IAM Identity Center

Recovery Time Objective (RTO): 1 hour Recovery Point Objective (RPO): 5 minutes

Disaster Recovery Plan​

  1. Infrastructure: Redeploy via Terraform
  2. Dashboards: Import from Git repository
  3. Data: CloudWatch data persists (no action needed)
  4. Users: Reassign via IAM Identity Center

எதிர்கால மேம்பாடுகள்​

Short-Term (1-3 months)​

  1. Anomaly Detection: ML-powered alerts for unusual patterns
  2. Cost Forecasting: Predict monthly costs based on trends
  3. SLO Tracking: Service Level Objective monitoring
  4. Multi-Region: Aggregate metrics across AWS regions

Medium-Term (3-6 months)​

  1. Advanced Analytics: BigQuery/Athena integration
  2. Custom Dashboards: Team-specific views
  3. Integration Testing: Automated observability tests
  4. API Gateway: RESTful API for external integrations

Long-Term (6-12 months)​

  1. AI-Powered Insights: Automated root cause analysis
  2. Predictive Scaling: Auto-adjust quotas based on forecasts
  3. Cost Optimization Engine: Automated model selection
  4. Compliance Automation: Automated audit reports

குறிப்புகள்​

AWS Services Documentation​

Standards & Protocols​

Document Version: 1.0
Last Updated: February 2026
Maintained By: AWS Solutions Architecture Team
