Setting up Application Signals + Transaction Search

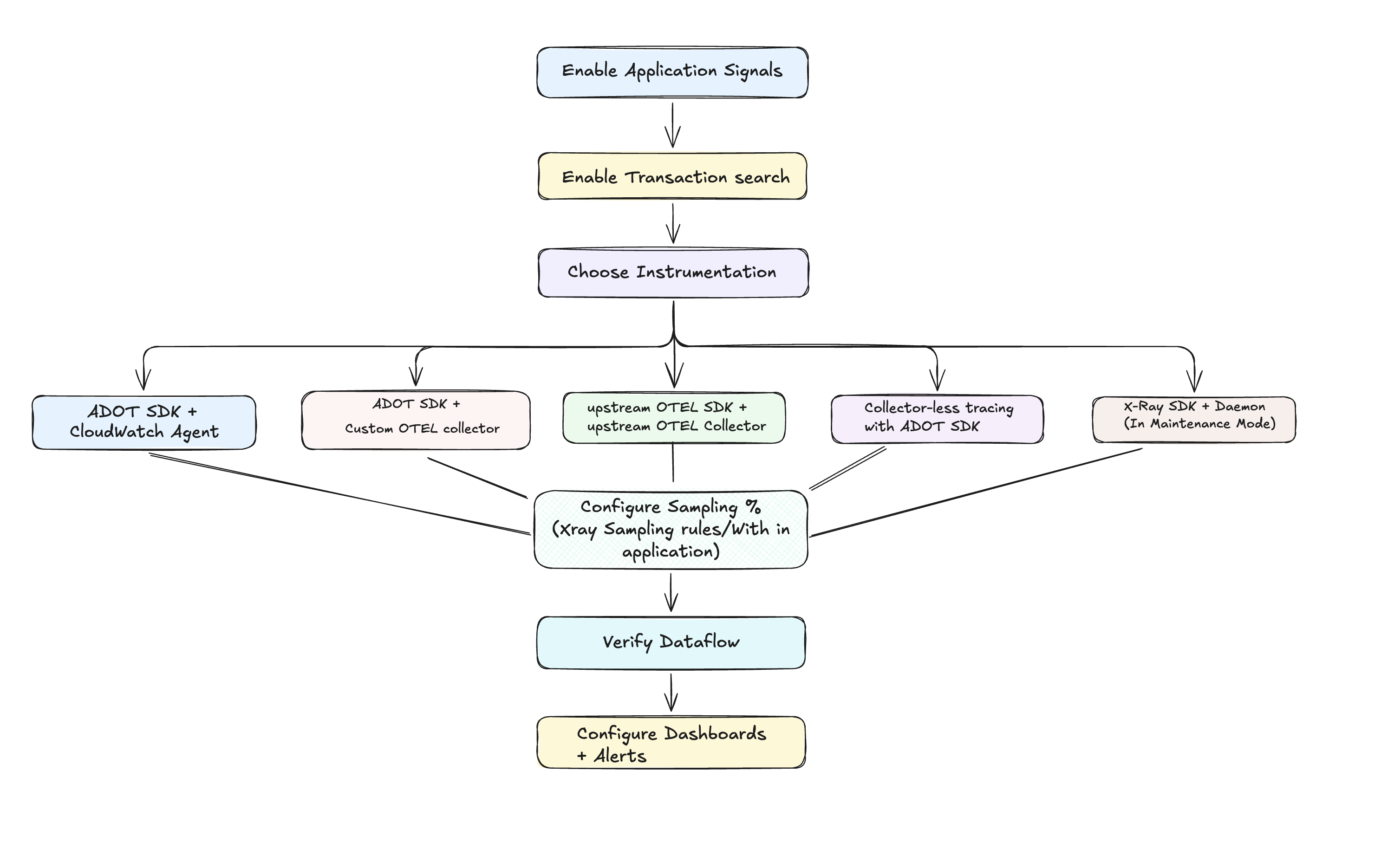

High-Level Setup Process

Prerequisites & Permissions

Before enabling CloudWatch Application Signals, ensure you have the necessary IAM permissions and infrastructure in place. Refer to Application Signals Permissions for detailed requirements.

Supported Systems

Application Signals is supported and tested on Amazon EKS, native Kubernetes, Amazon ECS, and Amazon EC2.

Language	Runtime Version
Java	JVM versions 8, 11, 17, 21, and 23
Python	Python versions 3.9 and higher
.NET	Release 1.6.0 and below: .NET 6, 8, and .NET Framework 4.6.2 and higher. Release 1.7.0 and higher: .NET 8, 9, and .NET Framework 4.6.2 and higher
Node.js	Node.js versions 14, 16, 18, 20, and 22
PHP	PHP versions 8.0 and higher
Ruby	CRuby >= 3.1, JRuby >= 9.3.2.0, or TruffleRuby >= 22.1
GoLang	Golang versions 1.18 and higher

For the full support matrix, see Application Signals Supported Systems.

Step 1: Enable Application Signals in your account

Refer to Enable Application Signals in your account documentation.

Step 2: Enable Transaction Search

Refer to Enable transaction search documentation.

Step 3: Choose Your Instrumentation Strategy

Based on your requirements, select one of the instrumentation approaches. Application Signals supports multiple combinations of SDKs and collectors:

Available SDKs

• AWS Distro for OpenTelemetry (ADOT) SDK — AWS distribution of OpenTelemetry with Application Signals support. Available for Java, Python, .NET, and Node.js.
• Upstream OpenTelemetry SDK — Standard vendor-neutral OpenTelemetry SDK. Works with any OTEL-supported language (Erlang, Rust, Ruby, Go, PHP, etc.).
• X-Ray SDK — Legacy AWS tracing SDK. ⚠️ Maintenance mode

Available Collectors / Agents

• CloudWatch Agent — Managed AWS agent with built-in Application Signals support, Container Insights integration, and log collection.
• OpenTelemetry Collector — Standard upstream or custom-built collector. Supports multi-destination telemetry fan-out.
• X-Ray Daemon — Legacy trace relay for X-Ray SDK. ⚠️ Maintenance mode

Decision Matrix

Approach	Best For	Key Benefits
ADOT SDK + CloudWatch Agent	AWS-native environments, deep service integration	Tight AWS integration, Container Insights correlation, managed experience
ADOT SDK + Custom OTEL Collector	Multi-destination telemetry with full Application Signals support	Client-side RED metrics, App Signals processor, multi-destination flexibility
Upstream OTEL SDK + OTEL Collector	Vendor-neutral strategy, non-ADOT languages, multi-cloud	Full vendor neutrality, any OTEL-supported language, no AWS SDK dependency
Direct OTLP Endpoint (Collector-less tracing)	Resource-efficient applications, minimal infrastructure	Minimal overhead, simplified architecture, reduced infrastructure
X-Ray SDKs	Legacy X-Ray users, gradual migration	Existing investment protection, minimal change requirements. ⚠️ Maintenance mode

Feature Comparison

Feature	ADOT SDK + CW Agent	ADOT SDK + Custom OTEL Collector	Upstream OTEL SDK + OTEL Collector	Collector-less tracing with ADOT SDK	X-Ray SDKs
AWS Support	✅ Yes	⚠️ Only for data sent to AWS	⚠️ Only for data sent to AWS	✅ Yes	✅ Yes (⚠️ Maintenance mode)
Nonstandard language support	❌ No	❌ No	✅ Yes	❌ No	❌ No
Container Insights integration	✅ Yes	❌ No	❌ No	❌ No	❌ No
Out of the box logging with CloudWatch Logs	✅ Yes	❌ No	❌ No	✅ Yes	❌ No
Out of the box runtime metrics	✅ Yes	✅ Yes	✅ Yes	❌ No	❌ No
Always gets RED metrics on 100% of traffic	✅ Yes (client-side)	✅ Yes (client-side)	⚠️ Only with 100% sampling (server-side)	⚠️ Only with 100% sampling (server-side)	⚠️ Only with 100% sampling (server-side)
Multi-destination telemetry	❌ No	✅ Yes	✅ Yes	❌ No	❌ No

For detailed implementation of each approach, see Instrumentation Setups.

Step 4: Understanding Sampling and Trace Indexing

Application Signals separates request sampling from trace indexing:

• Request Sampling: Determines which percentage of requests are sampled and sent to AWS
• Selective Trace Indexing: Percentage of spans stored in CloudWatch Logs that are sent to X-Ray backend for X-Ray trace summaries. Trace summaries are helpful for debugging transactions and are valuable for asynchronous processes. You need to index only a small fraction of spans as trace summaries.

Request Sampling

1. X-Ray Centralized Sampling (Default and Recommended)

When you enable Application Signals with the ADOT SDK and a CloudWatch Agent (or OpenTelemetry Collector), X-Ray centralized sampling is enabled by default with these settings:

Setting	Default Value	Description
Reservoir	1 request/second	Fixed number of requests sampled per second
Fixed Rate	5%	Percentage of additional requests beyond reservoir

The environment variables for the AWS Distro for OpenTelemetry (ADOT) SDK agent are set as follows:

Environment Variable	Value	Description
OTEL_TRACES_SAMPLER	xray	Uses X-Ray sampling service
OTEL_TRACES_SAMPLER_ARG	endpoint=http://localhost:2000	CloudWatch agent endpoint

You can modify these defaults at any time through the X-Ray console without redeploying your application. For example, to increase sampling to 10%, update the sampling rule's fixed rate. See Configuring sampling rules for the full list of rule options, examples, and how to create service-specific rules.

When Does the X-Ray Remote Sampler Apply?

The xray sampler works by calling http://localhost:2000/GetSamplingRules and http://localhost:2000/SamplingTargets through a local proxy. This means X-Ray remote sampling only works when a local proxy is running:

• CloudWatch Agent — exposes the sampling proxy on port 2000 by default
• OpenTelemetry Collector — with the AWS Proxy extension configured

If no local proxy is available (e.g., in collector-less mode), the ADOT SDK cannot reach the sampling endpoints and silently falls back to ParentBased(AlwaysOn) at 100%.

2. Configuring X-Ray Remote Sampler per Runtime

Each ADOT SDK language runtime requires specific configuration to use X-Ray remote sampling rules. Refer to the guide for your language:

Runtime	Configuration Guide
Java	Using X-Ray Remote Sampling with ADOT Java
Python	Using X-Ray Remote Sampling with ADOT Python
Node.js	Using X-Ray Remote Sampling with ADOT JavaScript
.NET	Using X-Ray Remote Sampling with ADOT .NET
Go	Configuring Sampling with ADOT Go

For all runtimes, the key environment variables are:

OTEL_TRACES_SAMPLER=xray
OTEL_TRACES_SAMPLER_ARG=endpoint=http://localhost:2000

Adjust the endpoint to match your CloudWatch Agent or collector proxy address (e.g., http://cloudwatch-agent.amazon-cloudwatch:2000 on EKS).

3. Local Sampling

If you don't have a local proxy available, or prefer local control without depending on the X-Ray service, you can configure sampling directly in the ADOT SDK using environment variables:

Environment Variable	Value	Description
OTEL_TRACES_SAMPLER	parentbased_traceidratio	Local ratio-based sampling
OTEL_TRACES_SAMPLER_ARG	0.10	10% sampling rate (adjust as needed)

This is particularly useful in collector-less mode where X-Ray remote sampling is unavailable. Without these variables, the SDK defaults to parentbased_always_on (100% sampling).

For more sampler options, see OTEL_TRACES_SAMPLER documentation.

4. X-Ray Adaptive Sampling (Cost-Optimized Approach)

Requirements

• ADOT Java SDK (v2.11.5 or higher)
• Must run with CloudWatch Agent or OpenTelemetry Collector
• Compatible with Amazon EC2, ECS, EKS, and self-hosted Kubernetes

For detailed setup instructions, refer to X-Ray Adaptive Sampling documentation.

If you don't need 100% sampling but want better anomaly coverage, consider X-Ray adaptive sampling which automatically increases sampling during error spikes and latency outliers while maintaining cost-effective baseline rates:

Key Benefits:

• Automatic anomaly detection: Boosts sampling during HTTP 5xx errors or high latency
• Cost control: Maintains low baseline sampling (e.g., 5%) during normal operations
• Configurable boost limits: Set maximum sampling rates and cooldown periods
• Critical trace capture: Ensures anomaly spans are captured even when full traces aren't sampled
• Centralized control: Configure through X-Ray sampling rules without application code changes

Configuration Example:

{
  "RuleName": "AdaptiveProductionRule",
  "Priority": 1,
  "ReservoirSize": 1,
  "FixedRate": 0.05,
  "ServiceName": "*",
  "ServiceType": "*",
  "Host": "*",
  "HTTPMethod": "*",
  "URLPath": "*",
  "SamplingRateBoost": {
    "MaxRate": 0.25,
    "CooldownWindowMinutes": 10
  }
}

Trace Indexing

1. Default Indexing Rate:

• 1% indexing is included at no additional charge
• Above 1% indexing incurs X-Ray pricing charges
• Refer to CloudWatch Pricing documentation for current rates

2. Custom Indexing Rates:

# Higher indexing for applications requiring more X-Ray analytics (incurs charges)
aws cloudwatch put-transaction-search-configuration \
  --span-indexing-rate 0.10  # 10% indexing - X-Ray charges apply

# Lower indexing for cost optimization (still within free tier)
aws cloudwatch put-transaction-search-configuration \
  --span-indexing-rate 0.005  # 0.5% indexing - no additional charges
