Querying Historical Security Lake Data with Amazon CloudWatch Logs Using Athena

Overview

When you migrate your security log management to Amazon CloudWatch Unified Data Store (unified data store), you gain a modern, unified destination for operational and security telemetry going forward. But your historical security data — the AWS CloudTrail events, Amazon Virtual Private Cloud (Amazon VPC) Flow Logs, AWS Security Hub findings, and other records you accumulated in Amazon Security Lake before the migration — doesn't disappear. It stays exactly where it is, already stored and partitioned in Security Lake's Amazon S3 backed structure.

This guide shows how to use Amazon Athena as a single query console for both your historical Security Lake data and your new CloudWatch unified data store logs — without exporting, copying, or duplicating any data. You can query each data store independently, or combine results from both using UNION ALL for cross-platform visibility.

New log events flow into CloudWatch unified data store as your primary platform. Historical events remain in Security Lake. Athena queries both from a single console.

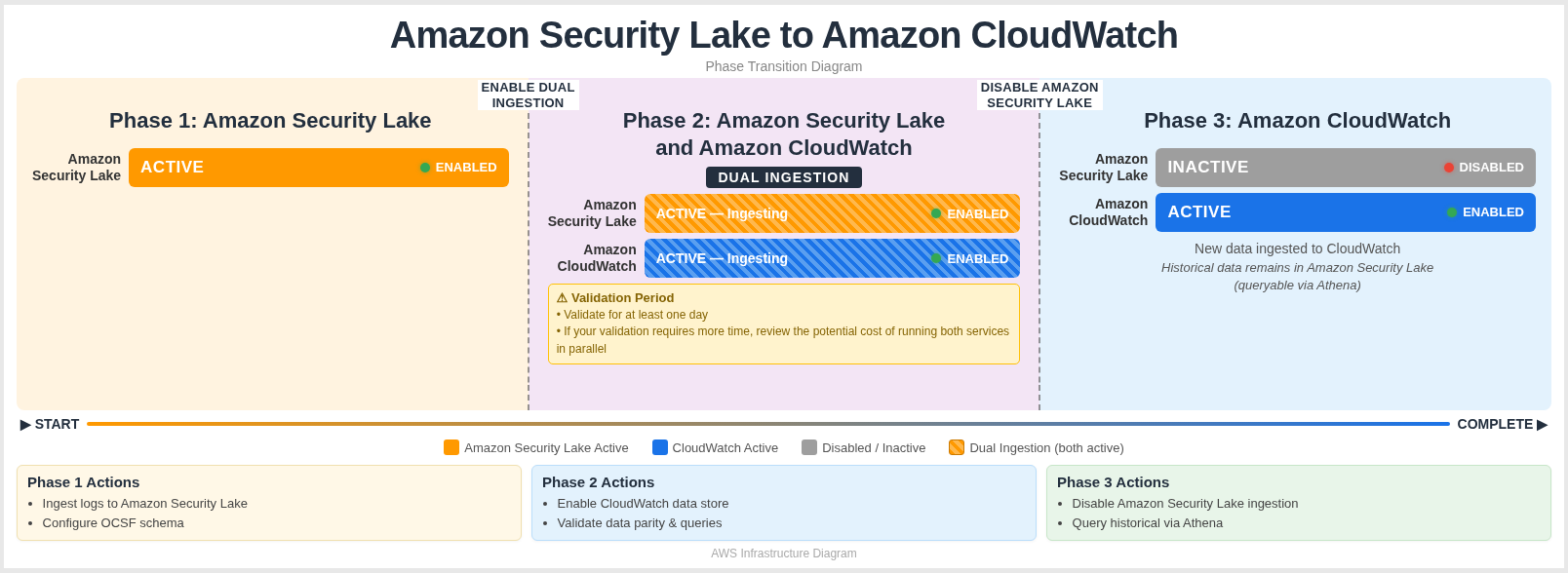

Migration Phases

Phase	What Happens
Phase 1 — Security Lake	VPC Flow Logs and other security data sources write exclusively to Security Lake, building a historical archive of OCSF-formatted records stored in Amazon S3 and queryable via AWS Glue Data Catalog.
Phase 2 — Dual Ingestion of Security Lake and CloudWatch	Both Security Lake and CloudWatch simultaneously receive data. This validation period is recommended for a minimum of 24 hours, giving teams time to verify log ingestion and consistency across both platforms before fully migrating over to CloudWatch. If your validation requires more time, review the potential costs of running both services in parallel.
Phase 3 — CloudWatch Only	Data sources write exclusively to CloudWatch. All historical Security Lake data remains preserved and accessible — and Athena lets you query both data stores from a single console, either independently or combined using `UNION ALL`.

Both Security Lake and Amazon CloudWatch unified data store normalize their data to the Open Cybersecurity Schema Framework (OCSF), which means field names like src_endpoint.ip, api.operation, and actor.user.name are consistent across both sources. This consistency makes cross-source queries straightforward — the same field references work whether you're querying Security Lake history or CloudWatch unified data store recent data.

Why Query In-Place Instead of Exporting?

Athena cross-catalog queries let you access historical Security Lake data directly without the need to export the data. Below are some of the benefits that make querying in-place the more efficient approach.

Benefit	Details
No duplicate storage charges	Your historical data already lives in Security Lake's Amazon S3 backed store. Exporting it into CloudWatch Logs means paying to store the same data twice. Querying it in-place means you pay only for what you already have.
No ETL pipelines to build or maintain	Exporting data requires a pipeline: something to read from Security Lake, transform or reformat the records, and write them into CloudWatch Logs. That pipeline needs to be built, tested, monitored, and maintained. Athena cross-catalog queries remove the need for a separate pipeline.
Historical data stays organized	Security Lake stores and partitions data by account, Region, and date — a structure well-suited for historical analysis. Moving that data into CloudWatch Logs disrupts that organization and may require re-partitioning or re-indexing.
New data flows naturally	Once you've migrated, CloudWatch becomes your primary destination for new log events. No need to run both pipelines simultaneously or maintain a complex routing layer.
Athena bridges both efficiently	Security Lake registers its tables in the default AWS Glue Data Catalog (`AwsDataCatalog`). CloudWatch uses an Amazon S3 Tables catalog (`s3tablescatalog/aws-cloudwatch`). Athena can reference both in a single SQL query using fully qualified catalog paths — no data movement required.

Result

You retain full access to your historical Security Lake data for event investigation, threat hunting, and compliance audits — while your new CloudWatch unified data store data flows in as the primary source for ongoing monitoring.

How It Works

Understanding how the two data stores fit together makes the queries easier to reason about.

Architecture

Security Lake → "awsdatacatalog"."<database>"."<table>"
CloudWatch unified data store → "s3tablescatalog/aws-cloudwatch"."logs"."<table>"

Athena supports querying across multiple Glue catalogs in a single SQL statement. By referencing each source with its fully qualified catalog path, you can query Security Lake and CloudWatch unified data store independently from the same Athena console — or combine results with UNION ALL when you need a unified view across both.

Both sources normalize their data to OCSF, so field names, types, and structures are consistent across both — making queries intuitive and reliable regardless of which data store you're targeting.

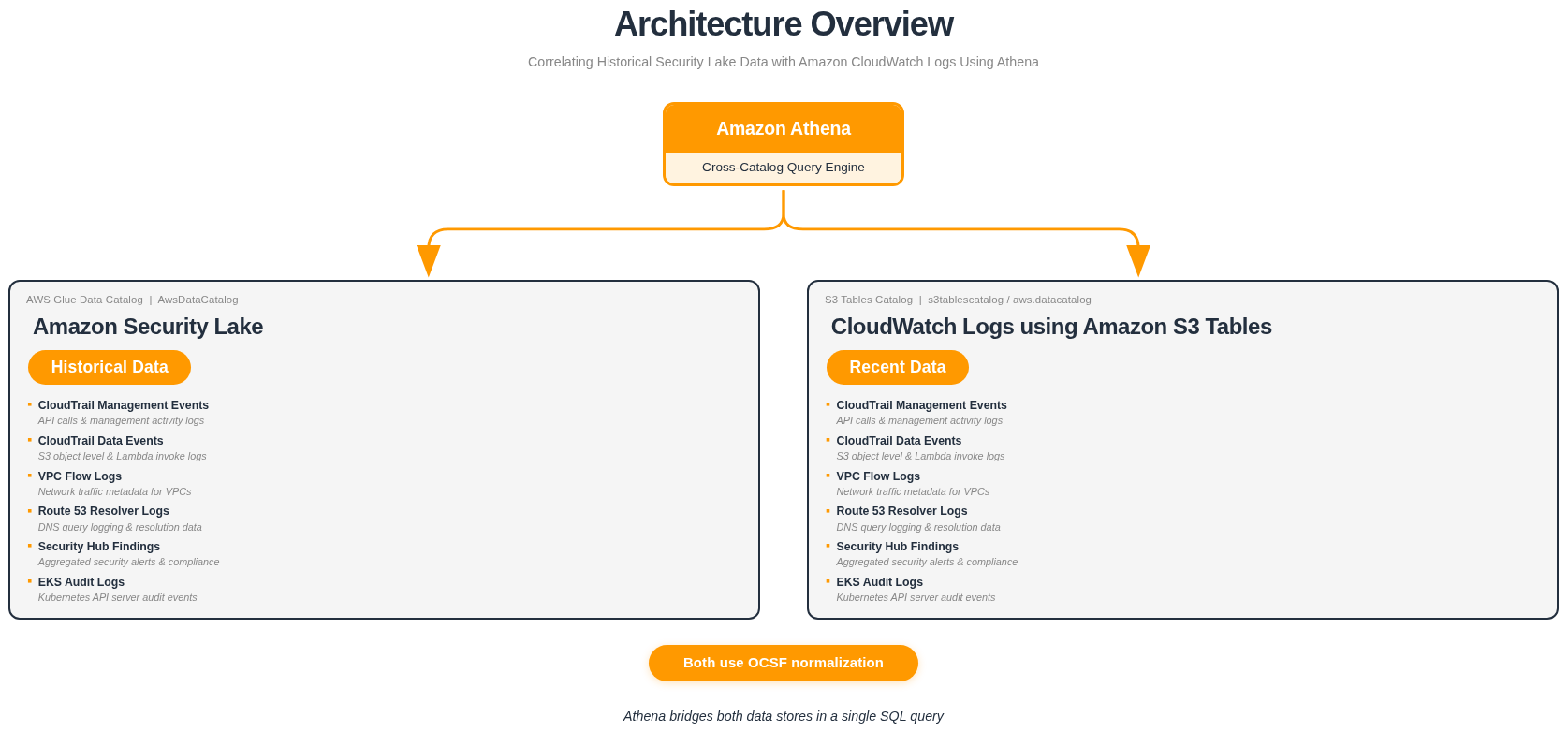

Architecture Diagram

Prerequisites

Before running cross-catalog queries, confirm your catalog paths, databases, and table names using the Athena console. The examples in this guide use the following naming conventions based on a us-east-1 deployment.

Security Lake Tables

Catalog	Database	Example Tables
`awsdatacatalog`	`amazon_security_lake_glue_db_us_east_1`	`amazon_security_lake_table_us_east_1_cloud_trail_mgmt_2_0`
		`amazon_security_lake_table_us_east_1_vpc_flow_2_0`
		`amazon_security_lake_table_us_east_1_route53_2_0`
		`amazon_security_lake_table_us_east_1_sh_findings_2_0`
		`amazon_security_lake_table_us_east_1_eks_audit_2_0`
		`amazon_security_lake_table_us_east_1_lambda_execution_2_0`

CloudWatch Unified Data Store Tables

Catalog	Database	Example Tables
`s3tablescatalog/aws-cloudwatch`	`logs`	`aws_cloudtrail__management`
		`aws_cloudtrail__data`
		`amazon_vpc__flow`
		`cloudtrail__networkactivityevent`
		`cloudtrailcustom__networkactivityevent`
		`microsoft_entraid__account_change`

Region-Specific Naming

The Security Lake database and table names include your deployment Region. The examples in this guide use us_east_1 (e.g., amazon_security_lake_glue_db_us_east_1). If Security Lake is enabled in a different Region, replace us_east_1 with your Region's identifier — for example, amazon_security_lake_glue_db_eu_west_1 for eu-west-1. The same applies to table names.

Discovering Your Table Names

Your table names may vary depending on your Region, Security Lake configuration, and which CloudWatch unified data store data sources you have enabled. Verify your table names by running:

SHOW TABLES IN "s3tablescatalog/aws-cloudwatch"."logs"

Querying Both Data Stores from Athena

After migrating to CloudWatch unified data store, Athena becomes your single query console for both historical and current security data. Security Lake tables are registered in the AWS Glue Data Catalog, and CloudWatch unified data store tables are registered in an S3 Tables catalog. Athena can access both — no data movement, no export pipelines, no duplication.

The sections below walk through three levels of querying:

Querying Security Lake — access your historical archive directly
Querying CloudWatch unified data store — access your current data via S3 Tables
Combining both with UNION ALL — view historical and recent data side by side in a single result set

Syntax Overview

The general pattern for referencing a table from a specific catalog:

-- Security Lake (Glue Data Catalog)
SELECT ...
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."table_name"

-- CloudWatch Unified Data Store (S3 Tables Catalog)
SELECT ...
FROM "s3tablescatalog/aws-cloudwatch"."logs"."table_name"

Available Tables Reference

Use these tables as a reference when building your own queries. Both Security Lake and CloudWatch unified data store use OCSF normalization, so the field names are consistent across data source types.

Security Lake

Table	OCSF Class	Common Query Fields
`..._cloud_trail_mgmt_2_0`	API Activity	`api.operation`, `src_endpoint.ip`, `actor.user.name`, `time_dt`
`..._vpc_flow_2_0`	Network Activity	`src_endpoint.ip`, `dst_endpoint.ip`, `dst_endpoint.port`, `time_dt`
`..._route53_2_0`	DNS Activity	`src_endpoint.ip`, `query.hostname`, `time_dt`
`..._sh_findings_2_0`	Vulnerability / Compliance / Detection Finding	`finding.title`, `cloud.account.uid`, `severity`, `severity_id`, `time_dt`
`..._eks_audit_2_0`	API Activity	`api.operation`, `actor.user.name`, `time_dt`
`..._lambda_execution_2_0`	API Activity	`api.operation`, `cloud.account.uid`, `time_dt`

Security Hub OCSF v2 Class Names

In OCSF v2 (1.1.0), Security Hub CSPM findings map to multiple OCSF class names — Vulnerability Finding, Compliance Finding, or Detection Finding — depending on the finding type.

CloudWatch Unified Data Store

Table	OCSF Class	Common Query Fields
`aws_cloudtrail__management`	API Activity	`api.operation`, `src_endpoint.ip`, `actor.user.name`, `time_dt`
`aws_cloudtrail__data`	API Activity	`api.operation`, `src_endpoint.ip`, `actor.user.name`, `time_dt`
`amazon_vpc__flow`	Network Activity	`src_endpoint.ip`, `dst_endpoint.ip`, `dst_endpoint.port`, `time_dt`
`cloudtrail__networkactivityevent`	Network Activity	`src_endpoint.ip`, `dst_endpoint.ip`, `time_dt`
`cloudtrailcustom__networkactivityevent`	Network Activity	`src_endpoint.ip`, `dst_endpoint.ip`, `time_dt`
`microsoft_entraid__account_change`	Account Change	`actor.user.name`, `time_dt`
`aws_security_hub__compliance_finding`	Compliance Finding	`finding_info.title`, `finding_info.uid`, `cloud.account.uid`, `severity`, `status`, `time_dt`
`aws_security_hub__vulnerability_finding`	Vulnerability Finding	`finding_info.title`, `finding_info.uid`, `cloud.account.uid`, `severity`, `status`, `time_dt`
`aws_security_hub__detection_finding`	Detection Finding	`finding_info.title`, `finding_info.uid`, `cloud.account.uid`, `severity`, `status`, `time_dt`

Table Name Discovery

CloudWatch unified data store table names are generated based on the data source name and type configured in your association. Run the following in Athena to discover your available tables:

SHOW TABLES IN "s3tablescatalog/aws-cloudwatch"."logs"

Part 1 — Querying Security Lake (Historical Data)

Your historical security data remains in Security Lake, stored in Amazon S3 and registered in the AWS Glue Data Catalog. These queries run against the awsdatacatalog catalog and access the same OCSF-formatted data that was collected before your migration.

Example 1a — Historical CloudTrail Management Events

Query CloudTrail management events from your Security Lake archive. This is useful for investigating past events, auditing historical API activity, or establishing baselines.

View SQL Query

SELECT
    api.operation        AS event_name,
    api.service.name     AS event_source,
    actor.user.name      AS username,
    src_endpoint.ip      AS source_ip,
    time_dt,
    status
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."amazon_security_lake_table_us_east_1_cloud_trail_mgmt_2_0"
WHERE time_dt BETWEEN TIMESTAMP '2025-01-01' AND TIMESTAMP '2025-06-01'
    AND api.operation = 'AssumeRole'
LIMIT 25;

Example 1b — Historical VPC Flow Logs

Query VPC Flow Logs from your Security Lake archive to investigate historical network activity.

View SQL Query

SELECT
    src_endpoint.ip              AS source_ip,
    dst_endpoint.ip              AS dest_ip,
    dst_endpoint.port            AS dest_port,
    traffic.bytes                AS bytes,
    activity_name                AS activity,
    time_dt,
    status_code,
    connection_info.direction    AS direction
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."amazon_security_lake_table_us_east_1_vpc_flow_2_0"
WHERE time_dt BETWEEN TIMESTAMP '2025-01-01' AND TIMESTAMP '2025-06-01'
    AND activity_name = 'Reject'
LIMIT 25;

Example 1c — Historical Security Hub Findings

Query Security Hub findings from your Security Lake archive to review your historical security posture.

View SQL Query

SELECT
    finding_info.title       AS finding_title,
    finding_info.uid         AS finding_uid,
    severity,
    status,
    cloud.account.uid        AS account,
    time_dt
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."amazon_security_lake_table_us_east_1_sh_findings_2_0"
WHERE time_dt BETWEEN TIMESTAMP '2025-01-01' AND TIMESTAMP '2025-06-01'
    AND severity_id >= 3
LIMIT 25;

Part 2 — Querying CloudWatch Unified Data Store (Recent Data)

After migration, your new security data flows into CloudWatch unified data store and is stored in Amazon S3 Tables. These queries run against the s3tablescatalog/aws-cloudwatch catalog and access OCSF-formatted data collected after your migration.

Example 2a — Recent CloudTrail Management Events

Query recent CloudTrail management events from CloudWatch unified data store. The same OCSF field names used in Security Lake queries work here.

View SQL Query

SELECT
    api.operation        AS event_name,
    api.service.name     AS event_source,
    actor.user.name      AS username,
    src_endpoint.ip      AS source_ip,
    time_dt,
    status
FROM "s3tablescatalog/aws-cloudwatch"."logs"."aws_cloudtrail__management"
WHERE time_dt BETWEEN TIMESTAMP '2025-06-01' AND TIMESTAMP '2025-07-01'
    AND api.operation = 'AssumeRole'
LIMIT 25;

Example 2b — Recent VPC Flow Logs

Query recent VPC Flow Logs from CloudWatch unified data store.

View SQL Query

SELECT
    src_endpoint.ip              AS source_ip,
    dst_endpoint.ip              AS dest_ip,
    dst_endpoint.port            AS dest_port,
    traffic.bytes                AS bytes,
    activity_name                AS activity,
    time_dt,
    status_code,
    connection_info.direction    AS direction
FROM "s3tablescatalog/aws-cloudwatch"."logs"."amazon_vpc__flow"
WHERE time_dt BETWEEN TIMESTAMP '2025-06-01' AND TIMESTAMP '2025-07-01'
    AND activity_name = 'Reject'
LIMIT 25;

Example 2c — Recent Security Hub Findings

Query recent Security Hub compliance findings from CloudWatch unified data store.

View SQL Query

SELECT
    finding_info.title       AS finding_title,
    finding_info.uid         AS finding_uid,
    severity,
    status,
    cloud.account.uid        AS account,
    time_dt
FROM "s3tablescatalog/aws-cloudwatch"."logs"."aws_security_hub__compliance_finding"
WHERE time_dt BETWEEN TIMESTAMP '2025-06-01' AND TIMESTAMP '2025-07-01'
    AND severity_id >= 3
LIMIT 25;

Security Hub Finding Types in CloudWatch Unified Data Store

Security Hub findings map to multiple OCSF event classes in CloudWatch unified data store. Depending on the finding type, your data may be in one of these tables:

CW UDS Table	Finding Type
`aws_security_hub__compliance_finding`	Compliance check results
`aws_security_hub__detection_finding`	Threat detection findings
`aws_security_hub__vulnerability_finding`	Vulnerability findings
`aws_security_hub__data_security_finding`	Data security findings

Run SHOW TABLES IN "s3tablescatalog/aws-cloudwatch"."logs" to discover your available tables.

Part 3 — Combining Both Data Stores with UNION ALL

Once you're comfortable querying each data store independently, you can combine results from both in a single query using UNION ALL. This gives you a unified view across the migration boundary — historical data from Security Lake and recent data from CloudWatch unified data store, side by side.

The key to making UNION ALL work well is using specific filters (e.g., a particular API operation, IP address, or finding title) so that both sides return relevant, comparable results. Without filters, the LIMIT will be consumed by whichever side returns rows first, and you may not see results from both data stores.

Why UNION ALL Instead of JOIN?

Cross-catalog JOINs between the AWS Glue Data Catalog (Security Lake) and S3 Tables catalog (CloudWatch unified data store) are technically possible in Athena, but they have significant performance and cost limitations. Athena cannot efficiently push down predicates across different catalog types, which results in large full-table scans on both sides before the join is evaluated. This leads to long-running queries and higher costs (Athena charges $5 per TB scanned). Using UNION ALL avoids this by running each query independently against its own catalog with proper partition pruning, then combining the results — delivering faster performance at lower cost.

Time Window Guidance

The WHERE clauses in these examples use hardcoded date ranges for both data sources to reflect the migration scenario. Security Lake filters target your historical archive (e.g., TIMESTAMP '2025-01-01' to TIMESTAMP '2025-06-01'), while CloudWatch unified data store filters target the period after migration (e.g., TIMESTAMP '2025-06-01' to TIMESTAMP '2025-07-01'). Replace these with the actual dates that match your migration timeline and retention periods.

UNION ALL Query Template

SELECT
    'Security Lake'   AS source,
    <field_1>         AS <alias>,
    <field_2>         AS <alias>,
    time_dt
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."<security_lake_table>"
WHERE time_dt BETWEEN TIMESTAMP '<YYYY-MM-DD>' AND TIMESTAMP '<YYYY-MM-DD>'
    AND <specific_filter>

UNION ALL

SELECT
    'CloudWatch UDS'  AS source,
    <field_1>         AS <alias>,
    <field_2>         AS <alias>,
    time_dt
FROM "s3tablescatalog/aws-cloudwatch"."logs"."<cw_uds_table>"
WHERE time_dt BETWEEN TIMESTAMP '<YYYY-MM-DD>' AND TIMESTAMP '<YYYY-MM-DD>'
    AND <specific_filter>

LIMIT 50;

Example 3a — AssumeRole Activity Across Both Time Periods

Track AssumeRole calls across the migration boundary. This is useful for investigating whether the same roles are being assumed before and after migration, or for detecting changes in access patterns.

View SQL Query

SELECT
    'Security Lake'      AS source,
    api.operation        AS event_name,
    api.service.name     AS event_source,
    actor.user.name      AS username,
    src_endpoint.ip      AS source_ip,
    time_dt,
    status
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."amazon_security_lake_table_us_east_1_cloud_trail_mgmt_2_0"
WHERE time_dt BETWEEN TIMESTAMP '2025-01-01' AND TIMESTAMP '2025-06-01'
    AND api.operation = 'AssumeRole'

UNION ALL

SELECT
    'CloudWatch UDS'     AS source,
    api.operation        AS event_name,
    api.service.name     AS event_source,
    actor.user.name      AS username,
    src_endpoint.ip      AS source_ip,
    time_dt,
    status
FROM "s3tablescatalog/aws-cloudwatch"."logs"."aws_cloudtrail__management"
WHERE time_dt BETWEEN TIMESTAMP '2025-06-01' AND TIMESTAMP '2025-07-01'
    AND api.operation = 'AssumeRole'

LIMIT 50;

What this query shows:

AssumeRole events from both time periods, with the source column identifying the data store
User identity and source IP to track who is assuming roles and from where, across the migration boundary
Status codes to identify whether role assumptions are succeeding or failing in both periods

Adapting this query:

Goal	Modification
Hunt for different API calls	Change `api.operation = 'AssumeRole'` to another operation like `'CreateUser'`, `'PutBucketPolicy'`, etc.
Filter by error events	Add `AND status = 'Failure'` to both SELECT blocks
Narrow to a specific user	Add `AND actor.user.name = '[USERNAME]'` to both SELECT blocks

Example 3b — Rejected VPC Flows Across Both Time Periods

Compare rejected network flows from Security Lake (historical) and CloudWatch unified data store (recent). This is useful for validating that security group and NACL rules are producing consistent deny patterns before and after migration.

View SQL Query

SELECT
    'Security Lake'              AS source,
    src_endpoint.ip              AS source_ip,
    dst_endpoint.ip              AS dest_ip,
    dst_endpoint.port            AS dest_port,
    traffic.bytes                AS bytes,
    time_dt,
    connection_info.direction    AS direction
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."amazon_security_lake_table_us_east_1_vpc_flow_2_0"
WHERE time_dt BETWEEN TIMESTAMP '2025-01-01' AND TIMESTAMP '2025-06-01'
    AND activity_name = 'Reject'

UNION ALL

SELECT
    'CloudWatch UDS'             AS source,
    src_endpoint.ip              AS source_ip,
    dst_endpoint.ip              AS dest_ip,
    dst_endpoint.port            AS dest_port,
    traffic.bytes                AS bytes,
    time_dt,
    connection_info.direction    AS direction
FROM "s3tablescatalog/aws-cloudwatch"."logs"."amazon_vpc__flow"
WHERE time_dt BETWEEN TIMESTAMP '2025-06-01' AND TIMESTAMP '2025-07-01'
    AND activity_name = 'Reject'

LIMIT 50;

What this query shows:

Rejected network flows from both time periods, identified by the source column
Source and destination IPs with port numbers to identify which traffic is being denied
Byte counts and direction to understand the volume and flow of rejected traffic

Adapting this query:

Goal	Modification
Filter by specific destination port	Add `AND dst_endpoint.port = 443` to both SELECT blocks
Filter by specific source IP	Add `AND src_endpoint.ip = '[IP_ADDRESS]'` to both SELECT blocks
Include accepted traffic too	Remove the `AND activity_name = 'Reject'` filter, or change to `'Accept'`

Example 3c — High-Severity Security Hub Findings Across Both Time Periods

Track high-severity Security Hub findings across the migration boundary. This is useful for identifying whether critical findings that existed before migration have been remediated, or whether new high-severity findings have appeared.

View SQL Query

SELECT
    'Security Lake'          AS source,
    finding_info.title       AS finding_title,
    finding_info.uid         AS finding_uid,
    severity,
    status,
    cloud.account.uid        AS account,
    time_dt
FROM "awsdatacatalog"."amazon_security_lake_glue_db_us_east_1"."amazon_security_lake_table_us_east_1_sh_findings_2_0"
WHERE time_dt BETWEEN TIMESTAMP '2025-01-01' AND TIMESTAMP '2025-06-01'
    AND severity_id >= 4

UNION ALL

SELECT
    'CloudWatch UDS'         AS source,
    finding_info.title       AS finding_title,
    finding_info.uid         AS finding_uid,
    severity,
    status,
    cloud.account.uid        AS account,
    time_dt
FROM "s3tablescatalog/aws-cloudwatch"."logs"."aws_security_hub__compliance_finding"
WHERE time_dt BETWEEN TIMESTAMP '2025-06-01' AND TIMESTAMP '2025-07-01'
    AND severity_id >= 4

LIMIT 50;

What this query shows:

High-severity findings (HIGH and CRITICAL) from both time periods, with the source column identifying the data store
Finding titles and UIDs to track specific findings across the migration boundary
Status to identify whether findings have been remediated or are still active
Account-level detail for multi-account environments

Adapting this query:

Goal	Modification
Include MEDIUM severity	Change `severity_id >= 4` to `severity_id >= 3` in both SELECT blocks
Filter by finding status	Add `AND status = 'New'` to both SELECT blocks to find unresolved findings
Focus on a specific account	Add `AND cloud.account.uid = '[ACCOUNT_ID]'` to both SELECT blocks
Query vulnerability findings	Replace the CW UDS table with `aws_security_hub__vulnerability_finding`

Overview​

Why Query In-Place Instead of Exporting?​

How It Works​

Architecture​

Prerequisites​

Security Lake Tables​

CloudWatch Unified Data Store Tables​

Querying Both Data Stores from Athena​

Syntax Overview​

Available Tables Reference​

Security Lake​

CloudWatch Unified Data Store​

Part 1 — Querying Security Lake (Historical Data)​

Example 1a — Historical CloudTrail Management Events​

Example 1b — Historical VPC Flow Logs​

Example 1c — Historical Security Hub Findings​

Part 2 — Querying CloudWatch Unified Data Store (Recent Data)​

Example 2a — Recent CloudTrail Management Events​

Example 2b — Recent VPC Flow Logs​

Example 2c — Recent Security Hub Findings​

Part 3 — Combining Both Data Stores with UNION ALL​

UNION ALL Query Template​

Example 3a — AssumeRole Activity Across Both Time Periods​

Example 3b — Rejected VPC Flows Across Both Time Periods​

Example 3c — High-Severity Security Hub Findings Across Both Time Periods​

Overview

Why Query In-Place Instead of Exporting?

How It Works

Architecture

Prerequisites

Security Lake Tables

CloudWatch Unified Data Store Tables

Querying Both Data Stores from Athena

Syntax Overview

Available Tables Reference

Security Lake

CloudWatch Unified Data Store

Part 1 — Querying Security Lake (Historical Data)

Example 1a — Historical CloudTrail Management Events

Example 1b — Historical VPC Flow Logs

Example 1c — Historical Security Hub Findings

Part 2 — Querying CloudWatch Unified Data Store (Recent Data)

Example 2a — Recent CloudTrail Management Events

Example 2b — Recent VPC Flow Logs

Example 2c — Recent Security Hub Findings

Part 3 — Combining Both Data Stores with UNION ALL

UNION ALL Query Template

Example 3a — AssumeRole Activity Across Both Time Periods

Example 3b — Rejected VPC Flows Across Both Time Periods

Example 3c — High-Severity Security Hub Findings Across Both Time Periods
